ARP Duplex Series

May not be exact product – for reference only.

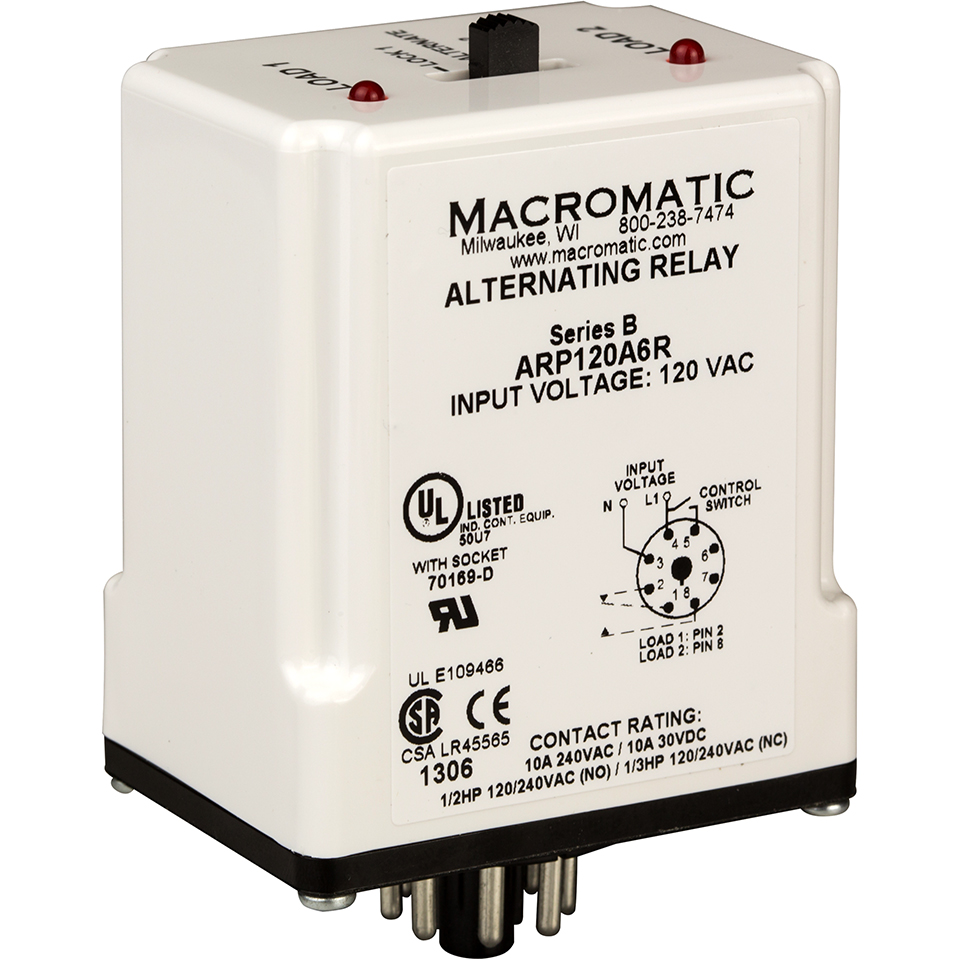

ARP120A6R

Lead Time:

7

Days

function

Duplex

control voltage

120V AC

output:

Duplex SPDT w/ Selector Switch

enclosure style

Plug-in

standard modifications

Switch to select normal alternation or lock loads 1 or 2

$130.00

Description of Function

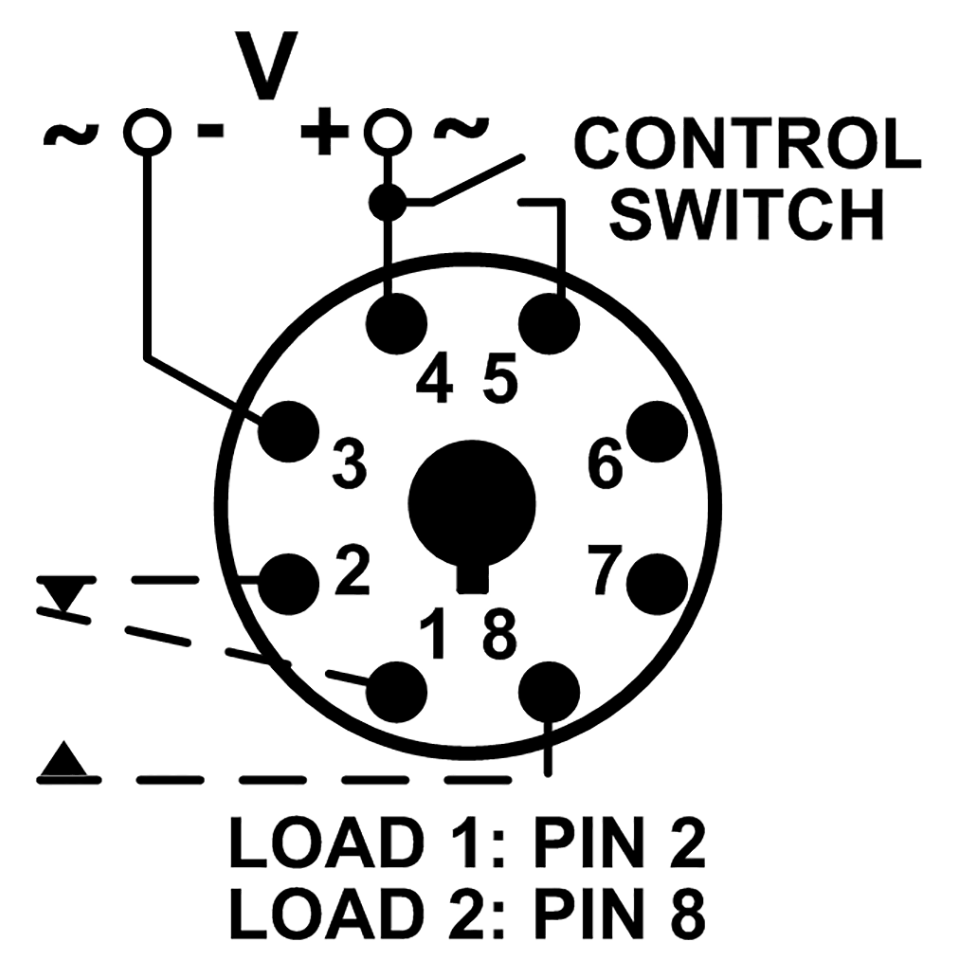

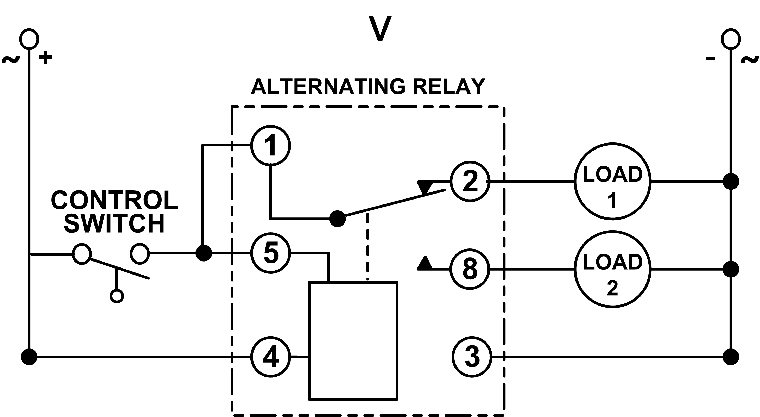

In the off state, the Control Switch is open, the Alternating Relay is in the LOAD 1 position, and both LOAD 1 & LOAD 2 are off. The red LED marked “LOAD 1” is ON. When the Control Switch closes, it energizes LOAD 1. As long as the Control Switch remains closed, LOAD 1 remains energized. When the Control Switch opens, LOAD 1 is turned off and the Alternating Relay toggles to the LOAD 2 position. The red LED marked “LOAD 2” is ON. When the Control Switch closes again, it energizes LOAD 2. When the Control Switch opens, LOAD 2 is turned off, the Alternating Relay toggles back to the LOAD 1 position, the red LED marked “LOAD 1” is ON, and the process can be repeated.

Product Overview

Features:

For Duplex Control of two loads Control Voltages of 12 & 24V AC/DC and 120 & 240V AC Three 10A output contact configurations: SPDT, DPDT, or DPDT Cross-Wired Optional low profile selector switch to lock in one sequence 2 LEDs indicate relay status

Enclosure Style:

Plug-in
Configuration / Contact Rating:
10A @ 240V AC/24V DC, 1/2HP @ 120/240V AC (N.O.), 1/3HP @ 120/240V AC (N.C.)
10A @ 240V AC/24V DC, 1/2HP @ 120/240V AC (N.O.), 1/3HP @ 120/240V AC (N.C.)
Application Information:
Voltage Tolerance: AC Operation: +10/-15% of nominal at 50/60 Hz.; DC Operation (12 & 24V only): +10/-15% of nominal. Load (Burden): Less than 3 VA Indicator LEDs: Two LEDs marked LOAD 1 and LOAD 2 Life: Mechanical: 10,000,000 operations; Full Load: 100,000 operations Temperature: -28° to 65° C (-18° to 149° F) • Voltage Tolerance: AC Operation: +10/-15% of nominal at 50/60 Hz.; DC Operation (12 & 24V only): +10/-15% of nominal. • Load (Burden): Less than 3 VA • Indicator LEDs: Two LEDs marked LOAD 1 and LOAD 2 • Life: Mechanical: 10,000,000 operations; Full Load: 100,000 operations • Temperature: -28° to 65° C (-18° to 149° F) • Voltage Tolerance: AC Operation: +10/-15% of nominal at 50/60 Hz.; DC Operation (12 & 24V only): +10/-15% of nominal. • Load (Burden): Less than 3 VA • Indicator LEDs: Two LEDs marked LOAD 1 and LOAD 2 • Life: Mechanical: 10,000,000 operations; Full Load: 100,000 operations • Temperature: -28° to 65° C (-18° to 149° F)
Approvals:

Operations

In the off state, the Control Switch is open, the Alternating Relay is in the LOAD 1 position, and both LOAD 1 & LOAD 2 are off. The red LED marked “LOAD 1” is ON. When the Control Switch closes, it energizes LOAD 1. As long as the Control Switch remains closed, LOAD 1 remains energized. When the Control Switch opens, LOAD 1 is turned off and the Alternating Relay toggles to the LOAD 2 position. The red LED marked “LOAD 2” is ON. When the Control Switch closes again, it energizes LOAD 2. When the Control Switch opens, LOAD 2 is turned off, the Alternating Relay toggles back to the LOAD 1 position, the red LED marked “LOAD 1” is ON, and the process can be repeated.
