PMP X-Series

Series

May not be exact product – for reference only.

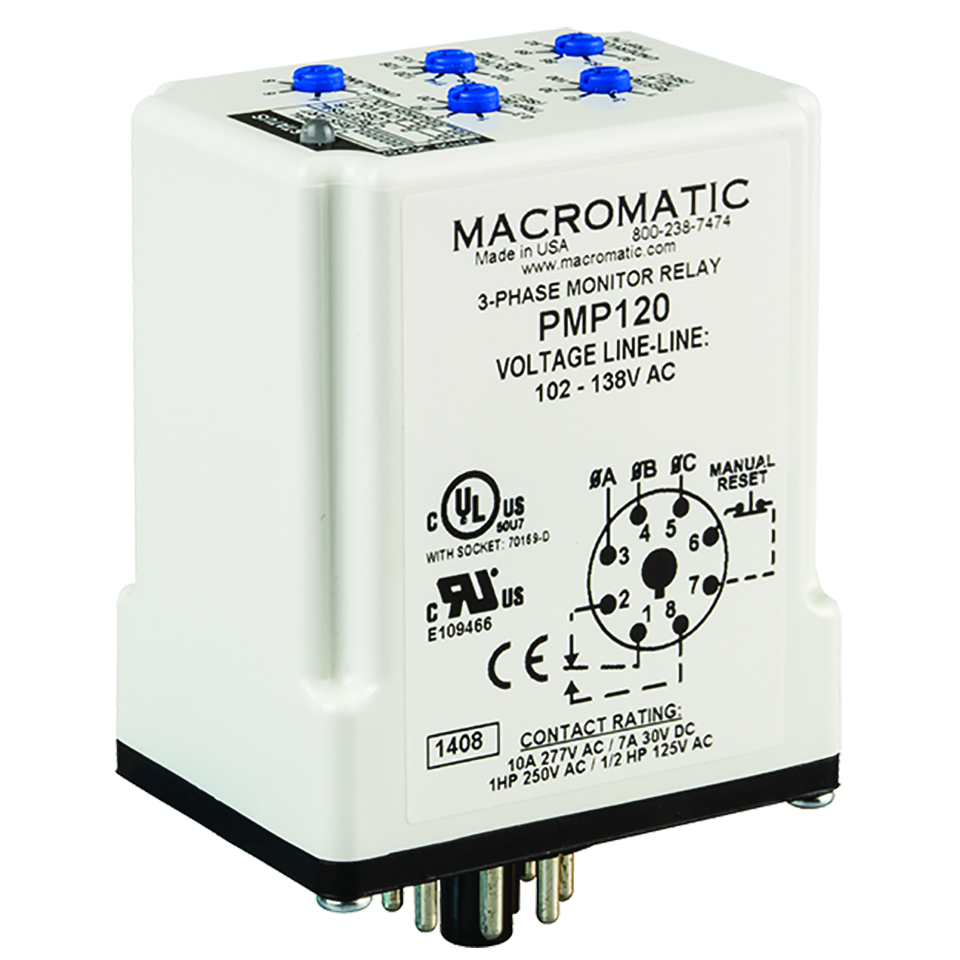

PMP120-X

Lead Time:

7 Days

Communication platform

None

Monitored Voltage:

102-138V AC

output:

5A SPDT + 5A SPNO

protection

Phase Loss, Phase Reversal, Voltage Unbalance, Undervoltage & Overvoltage

ENCLOSURE STYLE

Additional SPNO Contact for Signaling Secondary System

standard modifications

Additional SPNO Contact for Signaling Secondary System

$222.68

Description of Function

When the proper 3-phase line voltage is applied to the unit and the phase sequence (rotation) is correct, the relay is energized after the Restart Delay is completed. Any one of five fault conditions will de-energize the relay after a delay. Re-energization is automatic upon correction of the fault condition. A bi-color status LED indicates normal condition and also provides specific fault indication to simplify troubleshooting. See Function Chart.

Description of Function

Product Overview

Features:

Protects against phase loss, phase reversal, phase unbalance, undervoltage, overvoltage & rapid cycling Universal voltage range of 190-500V—greater range that covers more global applications True RMS voltage measurement ensures accurate sensing across more applications Retains fault indication and continues monitoring all voltages even with a lost phase Full fault indication on top of unit for easy troubleshooting 5A DPDT output provides isolated contact for alarm circuits | Learn More

Enclosure Style:

Additional SPNO Contact for Signaling Secondary System
Configuration / Contact Rating:
Application Information:
Approvals:

Operations

When the proper 3-phase line voltage is applied to the unit and the phase sequence (rotation) is correct, the relay is energized after the Restart Delay is completed. Any one of five fault conditions will de-energize the relay after a delay. Re-energization is automatic upon correction of the fault condition. A bi-color status LED indicates normal condition and also provides specific fault indication to simplify troubleshooting.
