Use Socket: 70169-D

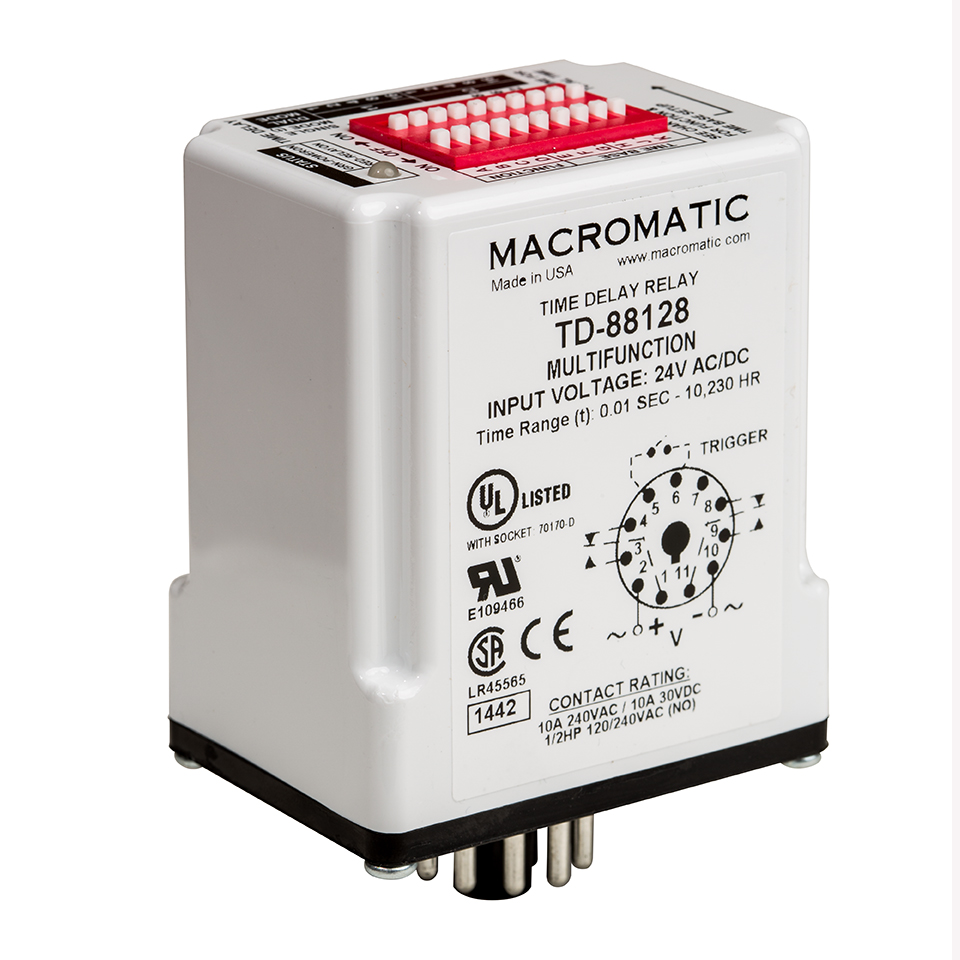

May not be exact product—for reference only.

  • 50MS - 10,230 HR.
  • 120V AC/DC
  • 10A SPDT
Description Of Function

TD-881 products have 16 functions built-in:

Single ModeDual Mode
On DelayRepeat Cycle (OFF 1st)
Interval OnRepeat Cycle (ON 1st)
Flasher (OFF 1st)Delayed Interval
Flasher (ON 1st)Triggered Delayed Interval
Off DelayOn Delay/Off Delay
Single ShotSingle Shot/Flasher
WatchdogOn Delay/Flasher
Single Shot (Trailing Edge)
Triggered On Delay

Programming is accomplished through the use of two 10-position DIP-switches. For more information, click here to view and/or print the catalog page in .pdf format. Or click here to view and/or print the instruction sheet in .pdf format.

Application Information
  • Voltage Tolerance: AC Operation: +10/-15% of nominal at 50/60 Hz.; DC Operation: +10/-15% of nominal.
  • Load (Burden): 2 VA
  • Setting Accuracy: +1% of set time or +50ms, whichever is greater.
  • Repeat Accuracy (Constant Voltage & Temperature): +0.1% of set time or +0.02 seconds, whichever is greater.
  • Reset Time: 0.1 Seconds
  • Output Contacts: 10A @ 240V AC/30V DC, 1/2HP @ 120/240V AC (N.O.),1/3HP @ 120/240V AC (N.C.), B300 & R300
  • Life: Mechanical: 10,000,000 operations; Full Load: 100,000 operations
  • Temperature: -28o to 65o C (-18o to 149o F)
  • Approvals:

    c-ur-us.jpg  CSA_Logo.gif  CE_Logo.gif  UL-socket.jpg
Dimensions - Inches (Millimeters)
