VWKP

Series

May not be exact product – for reference only.

VWKP120A

Lead Time:

10 Days

Function:

Voltage band relay

Monitored Voltage:

120VAC

output:

10A DPDT

DROP OUT VOLTAGE SETTING

Adjustable % of Pick-up Voltage Setting

ENCLOSURE STYLE

Plug-in

$120.98

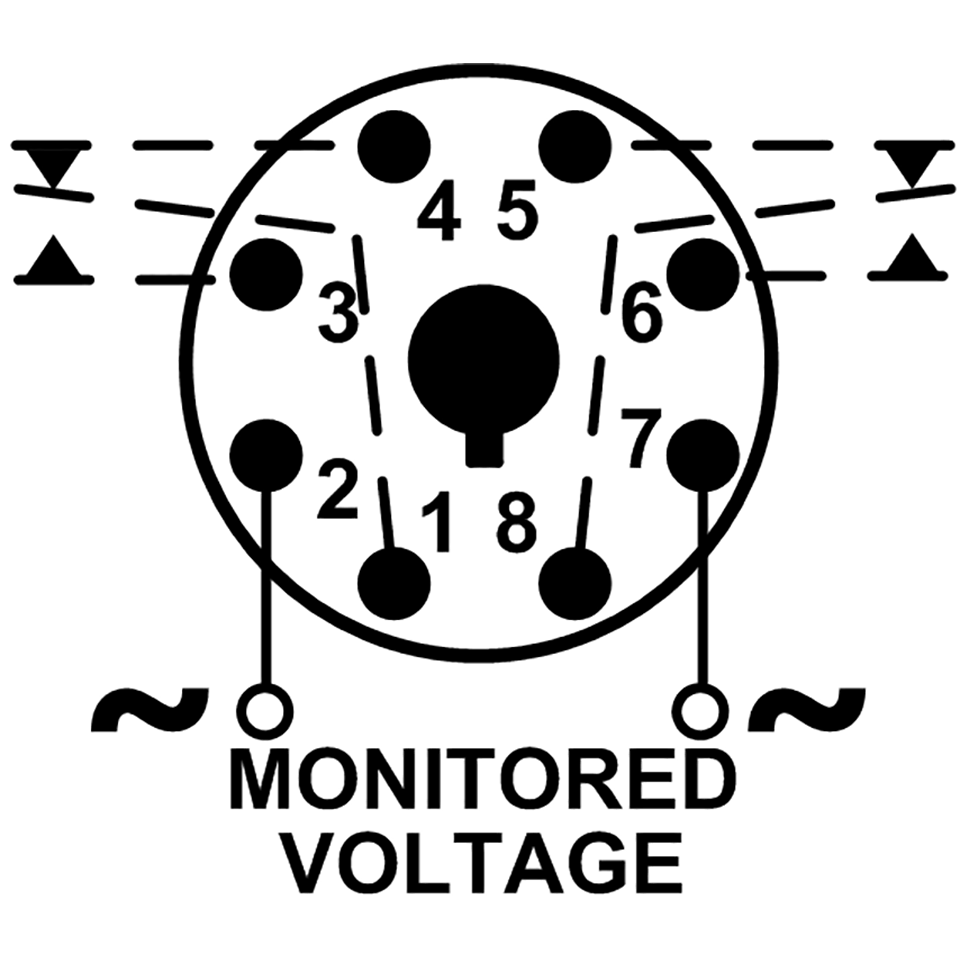

Description of Function

Description of Function

Product Overview

Features:

  • Monitors AC single phase and DC voltages
  • True RMS Sensing ensures more accurate sensing
  • Wide range of user-adjustable voltage pick-up and drop-out settings
  • Adjustable time delay on drop-out of 0.1-10 seconds
  • Pilot Duty Rating
  • LED indicates output relay status

Enclosure Style:

Plug-in
Configuration / Contact Rating:
10A @ 240V AC, 7A @ 30V DC, 1/4HP @ 120/240V AC, C300
10A @ 240V AC, 7A @ 30V DC, 1/4HP @ 120/240V AC, C300
Application Information:
  • Voltage Tolerance: +50%/-50% of nominal AC voltage (50-60Hz, +5%) or DC voltage; No separate input voltage is required since unit is powered by monitored voltage.
  • Load (Burden): Less than 2 VA (12-120V); 30VA (240V & 480V)
  • Voltage Settings:
    Pick-up (Umax): Adjustable across full range as shown on the product nameplate
    Drop-out (Umin): Adjustable from 75-95% of the Pick-up setting
  • Response Times: Pick-up: 500 ms; Drop-out (t): Adjustable 0.1-10 Seconds
  • Indicator LED: Red when Relay is energized; Green when Relay is Off
  • Output Contacts: 10A @ 240V AC, 7A @ 30V DC, 1/4HP @ 120/240V AC, C300
  • Life: Mechanical: 10,000,000 operations; Full Load: 100,000 operations
  • Temperature: -28° to 65° C (-18° to 149° F)
Approvals:

Operations

Over/Under Voltage Relays provide protection to equipment where either an over or under voltage condition is potentially damaging. They are designed to operate when the operating voltage reaches a preset value and drop-out when the operating voltage drops to a level below the preset value.

Adjust the pick-up voltage setting (Umax) between the full range as shown on the product nameplate. Then adjust the drop-out voltage setting (Umin) between 75% and 95% of the pick-up setting. The relay energizes (and the LED is Red) when the monitored voltage is above the pick-up setting for a period longer than the fixed pick-up time delay of 0.5 seconds. The relay de-energizes (and the LED is Green) when the monitored voltage is below the drop-out setting for a period longer than the drop-out time delay (t), which is adjustable between 0.1-10 seconds.
