SEAL LEAKAGE & TEMPERATURE RELAYS

Seal Leakage Relays monitor the shaft seals of submersible pumps to protect against damage and premature failure. Combination Over Temperature & Seal Leakage Relays provide protection from both conditions. Everything needed for easy set-up, operation and troubleshooting is on top of the units: Bi-color LED status indication and low-profile adjustments.

Monitor and Protect Submersible Pumps from Damage

Models are available with plug-in enclosures (SFP and TCP Series) or Flange Mounted (SFF and TCF Series) for mounting on inner door with a back-mounted socket.



SEAL LEAKAGE RELAYS

Seal Leakage Relays monitor pumps using Resistance Sensing Leakage Detection to provide a warning of leaking seals. Select from single channel or dual channel configurations to monitor two pumps. Two sensitivity ranges are available to meet requirements.

OVER TEMPERATURE & SEAL LEAKAGE RELAYS

These single channel relays protect pumps against damage from both conditions. TCF-A models can be installed in place of existing Flygt MiniCas; TCF-E works with pumps using float-type sensors; TCF-F works with pumps using CLS or FLS sensors.


Enclosure Style
SL_Mount
  • Flange for Door Mounting (31)
  • Plug-in (30)
Relay Type
SL_relay_type
  • Seal Leakage (39)
  • Seal Leakage and Over Temperature (22)
Function Configuration
SL_Function_Confg
  • Dual Channel 8 Pin (2) SPNO (15)
  • Single Channel 8 Pin SPDT (15)
  • Combination Single Channel Seal Leak and Over Temperature, Automatic Reset Only (7)
  • Single Channel 11 Pin DPDT (7)
  • Combination Single Channel Seal Leak and Over Temperature, Automatic and Manual Reset (6)
  • Combination Single Channel Seal Leak and Over Temperature, Automatic and Manual Reset (For Ebara pumps using float-type leakage detection) (3)
  • Combination Single Channel Seal Leak and Over Temperature, Automatic and Manual Reset (For Xylem/Flygt pumps using CLS or FLS sensor (MINI-CAS)) (3)
  • Combination Single Channel Seal Leak and Over Temperature, Automatic and Manual Reset (Replaces Flygt Control with non-Flygt pump) (2)
  • Single Channel 8 SPDT (2)
  • Combination Single Channel Seal Leak and Over Temperature, Automatic Rest only (1)
Output
SL_Output
  • 10A SPDT (16)
  • (2) 5A SPNO (15)
  • (2)7A SPDT (11)
  • 7A DPDT (10)
  • 7A SPDT & SPNO (6)
  • 7A SPDT & SPNC (3)
Control Voltage
SL_Control_Voltage
  • 120V AC (17)
  • 24V AC (16)
  • 240V AC (15)
  • 24V AC/DC (13)
Sensitivity Range
SL_Sensitivity_Range
  • 1k - 250k Ohms (28)
  • 4.7k - 100k Ohms (25)
  • Fixed (8)

Need a custom engineered product? We offer engineering assistance and quick turnarounds on prototypes.

FILTER BY MODEL NUMBER
Model Number
SORT BY
product sort by

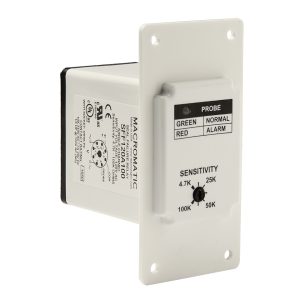

SFF Series

Function Configuration:

Dual Channel 8 Pin (2) SPNO

Control Voltage:

24V AC

Output:

(2) 5A SPNO

Sensitivity Range:

4.7k – 100k Ohms

Mount:

Flange for Door Mounting

$274.90

SFP Series

Function Configuration:

Single Channel 11 Pin DPDT

Control Voltage:

24V AC

Output:

7A DPDT

Sensitivity Range:

4.7k – 100k Ohms

Mount:

Plug-in

$136.06

SFF Series

Function Configuration:

Dual Channel 8 Pin (2) SPNO

Control Voltage:

24V AC

Output:

(2) 5A SPNO

Sensitivity Range:

1k – 250k Ohms

Mount:

Flange for Door Mounting

$274.90

SFP Series

Function Configuration:

Single Channel 11 Pin DPDT

Control Voltage:

24V AC

Output:

7A DPDT

Sensitivity Range:

1k – 250k Ohms

Mount:

Plug-in

$136.06

SFF Series

Function Configuration:

Single Channel 8 Pin SPDT

Control Voltage:

120V AC

Output:

10A SPDT

Sensitivity Range:

4.7k – 100k Ohms

Mount:

Flange for Door Mounting

$240.85

SFF Series

Function Configuration:

Single Channel 8 Pin SPDT

Control Voltage:

120V AC

Output:

10A SPDT

Sensitivity Range:

1k – 250k Ohms

Mount:

Flange for Door Mounting

$240.85

SFF Series

Function Configuration:

Dual Channel 8 Pin (2) SPNO

Control Voltage:

120V AC

Output:

(2) 5A SPNO

Sensitivity Range:

4.7k – 100k Ohms

Mount:

Flange for Door Mounting

$274.90

SFF Series

Function Configuration:

Dual Channel 8 Pin (2) SPNO

Control Voltage:

120V AC

Output:

(2) 5A SPNO

Sensitivity Range:

1k – 250k Ohms

Mount:

Flange for Door Mounting

$274.90

SFF Series

Function Configuration:

Single Channel 8 Pin SPDT

Control Voltage:

240V AC

Output:

10A SPDT

Sensitivity Range:

4.7k – 100k Ohms

Mount:

Flange for Door Mounting

$240.85

SFF Series

Function Configuration:

Single Channel 8 Pin SPDT

Control Voltage:

240V AC

Output:

10A SPDT

Sensitivity Range:

1k – 250k Ohms

Mount:

Flange for Door Mounting

$240.85

SFF Series

Function Configuration:

Dual Channel 8 Pin (2) SPNO

Control Voltage:

240V AC

Output:

(2) 5A SPNO

Sensitivity Range:

4.7k – 100k Ohms

Mount:

Flange for Door Mounting

$274.90

SFF Series

Function Configuration:

Dual Channel 8 Pin (2) SPNO

Control Voltage:

240V AC

Output:

(2) 5A SPNO

Sensitivity Range:

1k – 250k Ohms

Mount:

Flange for Door Mounting

$274.90
