PC1MDUL

Series

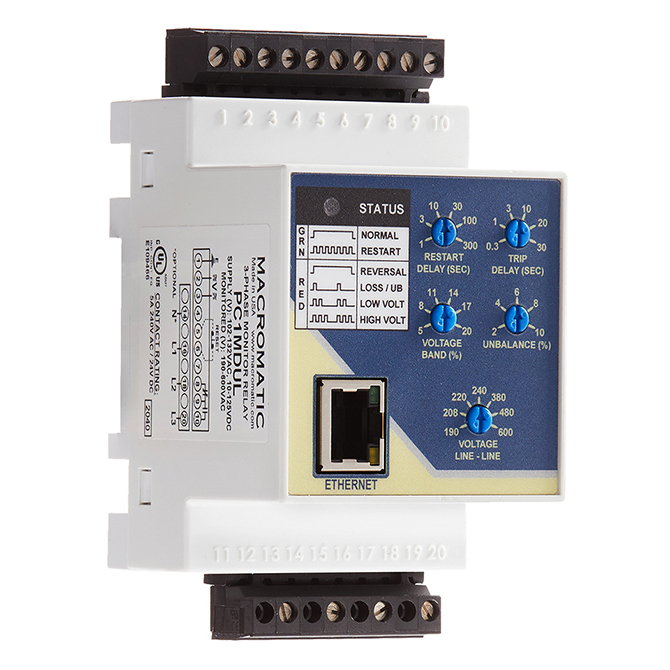

May not be exact product – for reference only.

PC1MDUL

Lead Time:

7

Communication platform

Modbus TCP

Monitored Voltage:

190 – 600V AC

output:

5A SPDT

protection

Phase Loss, Phase Reversal, Unbalance, Undervoltage & Overvoltage

ENCLOSURE STYLE

Din-Rail

standard modifications

Local Adjustment (PC1MDUL)

$551.38

Description of Function

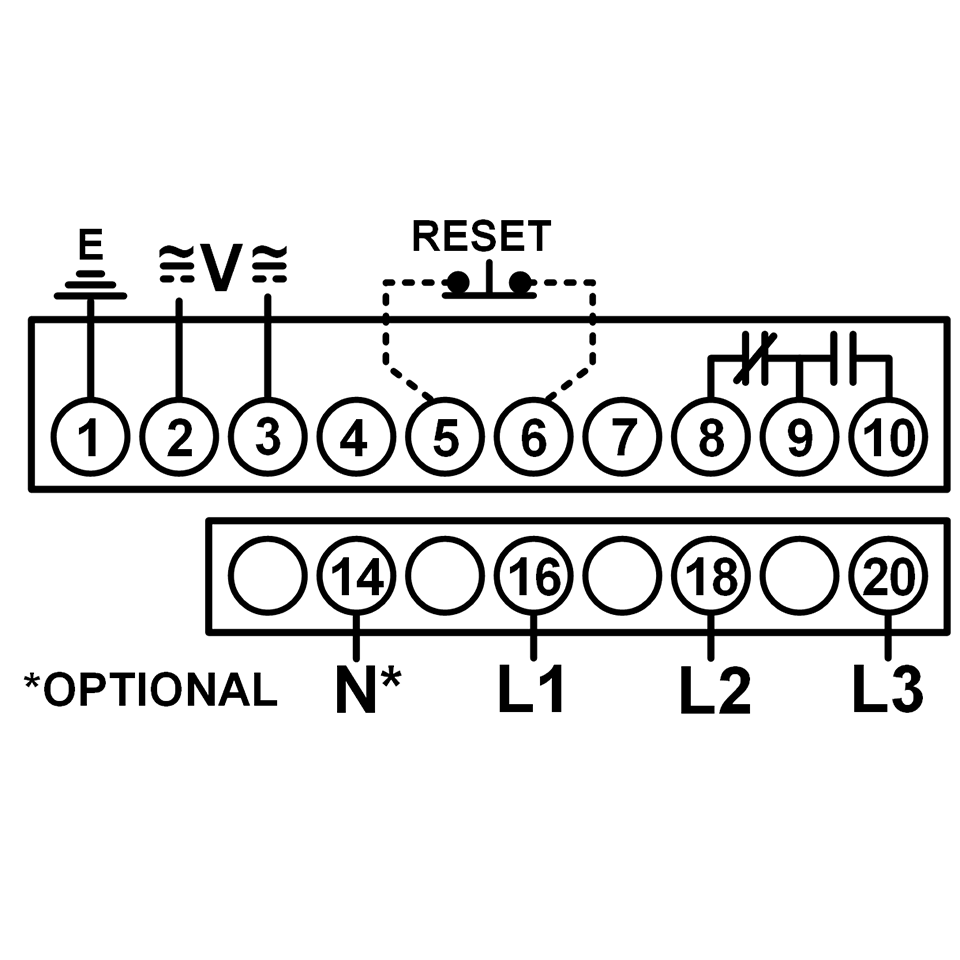

As standard the PC Series Relays are in the Automatic Reset mode. However, they can be set to Manual Reset mode by connecting a momentary N.C. switch across terminals 5 and 6. Upon application of control voltage, the PC Series will go into Manual Reset mode if it recognizes an N.C. switch across terminals 5 and 6. The N.C. switch must be opened (pressed) to reset the relay and resume normal operation after either a fault clears or after each power-up when the unit is in Manual Reset mode.

Product Overview

Features:

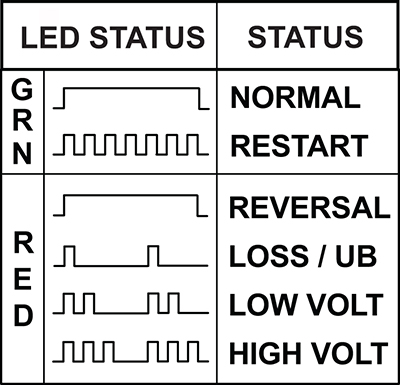

Three-Phase Monitor Relays provide real-time status and measurement via Modbus TCP Communication makes data available for continuous monitoring, real time alerts and intelligent troubleshooting of voltage systems Real time data improves decision making within smart control systems Protects against phase loss, phase reversal, phase unbalance, undervoltage and overvoltage True RMS voltage measurement ensures more accurate measurement regardless of load type or wave shape LED status indication on front face for easy troubleshooting Universal monitored voltage:190 – 600V AC (50/60Hz) Control voltage: 102 – 132V AC; 10 – 132V DC

Enclosure Style:

Din-Rail
Configuration / Contact Rating:
 SPDT 5A @ 250V AC
Application Information:
Load (Burden): 3VA Monitored Range: 190 – 600V AC Control Voltage: 102 – 132V AC; 10 – 132V DC Output Contacts: SPDT 5A @ 250V AC Life: Electrical – 100,000 closures @ full load; 360 operations per hour max. frequency; Mechanical – 30 million closures @ no load; 72,000 operations per hour max. frequency Temperature: Operating, -28o to 65o C (-18o to 149o F) Storage, -25o to 75o C (-40o to 185o F)
Approvals:

Operations

Phase Loss: Unit trips on loss of any Phase L1, L2 or L3, regardless of any regenerative voltages. Phase Reversal (Out-of-Sequence): Unit trips if sequence (rotation) of the three phases is anything other than L1-L2-L3. It will not work on L3-L2-L1. Phase Unbalance: Adjustable from 2 – 10% unbalance. Unit trips when any one of the three lines deviates from the average of all three lines by more than the adjusted set point for a period longer than the adjustable trip delay. It will reset at 80% of the unbalance trip setting.
