This comprehensive cross-reference can assist you to select replacement products. We believe these products are electrically and functionally equivalent to the Macromatic product listed, except as noted. However, we can not be responsible for any errors or corrections of data from published competitive data. It is the user’s responsibility to ensure the suitability of the substitution.



Competitor Part No:

CCR Search

Competitor Series:

CCR Dropdown

Competitor: MPE | Competitor Series: 001-230 | Competitor Part #: 12301212

MACROMATIC COMPATIBLE PART:

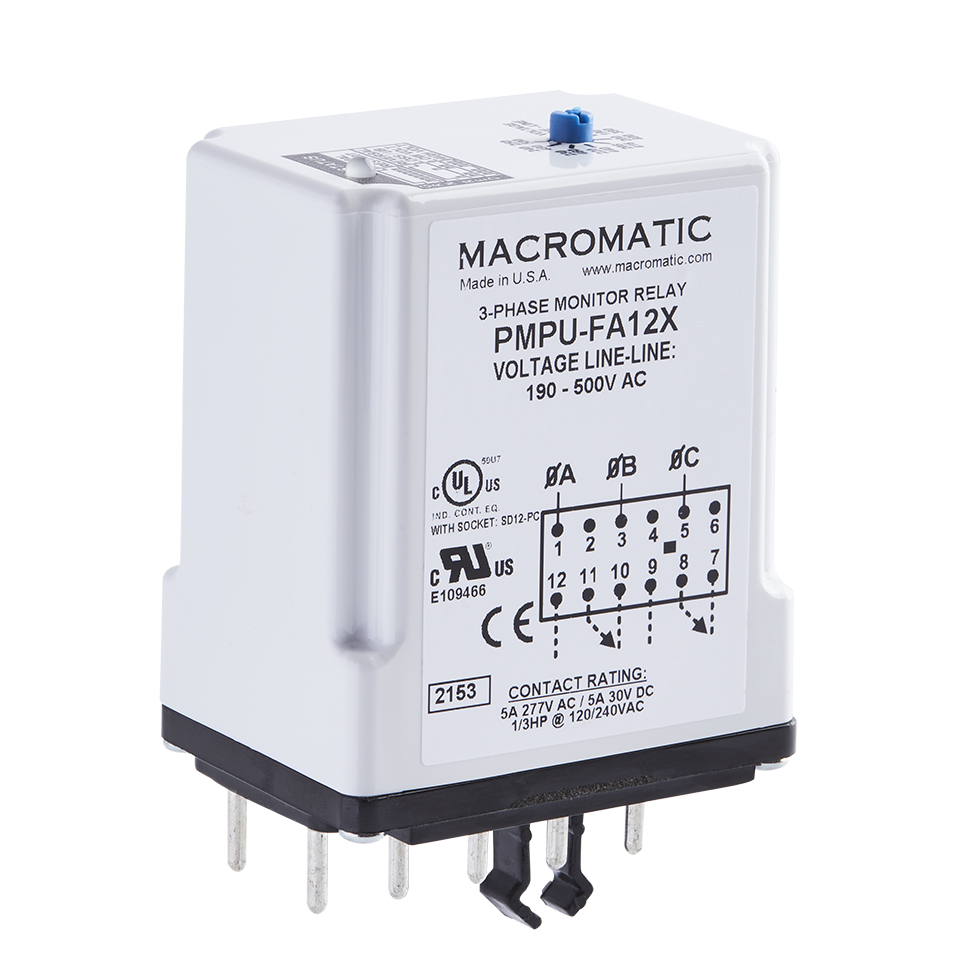

PMPU-FA12X

DIFFERENCES:

While functionally the same and with the same output configurations, there are some differences between the Macromatic PMPU-FA12X and the MPE 001-230-1212 products. First, the PMPU-FA12X works on any three-phase system from 190-500V AC; the 001-230-1212 only works on 230V AC, so multiple products are required to cover 208, 240, 400 & 480V systems. Second, the PMPU-FA12X includes overvoltage protection and a fixed 4 second time delay on overvoltage as standard; the MPE 001-230-1212 can be ordered with or without overvoltage protection & with a variety of fixed time delay on overvoltage values. Third, the PMPU-FA12X comes in a standard 3″ tall enclosure while the 001-230-1212 is in a taller 3.75″ enclosure. Finally, the PMPU-FA12X has a 5A @ 240V AC output contact rating while the 001-230-1212 is rated 10A @ 240V AC. However, the PMPU-FA12X does have a B300 & R300 Pilot duty rating while the 001-230-1212 does not have any pilot duty rating.

Competitor: MPE | Competitor Series: 001-230 | Competitor Part #: 001-230-118

MACROMATIC COMPATIBLE PART:

PMPU-FA8X

DIFFERENCES:

The MPE unit works on 240V only; the Macromatic PMPU-FA8X works on any voltage from 190-500V

Competitor: MPE | Competitor Series: 001-230 | Competitor Part #: 001-230-1212

MACROMATIC COMPATIBLE PART:

PMPU-FA12X

DIFFERENCES:

While functionally the same and with the same output configurations, there are some differences between the Macromatic PMPU-FA12X and the MPE 001-230-1212 products. First, the PMPU-FA12X works on any three-phase system from 190-500V AC; the 001-230-1212 only works on 230V AC, so multiple products are required to cover 208, 240, 400 & 480V systems. Second, the PMPU-FA12X includes overvoltage protection and a fixed 4 second time delay on overvoltage as standard; the MPE 001-230-1212 can be ordered with or without overvoltage protection & with a variety of fixed time delay on overvoltage values. Third, the PMPU-FA12X comes in a standard 3″ tall enclosure while the 001-230-1212 is in a taller 3.75″ enclosure. Finally, the PMPU-FA12X has a 5A @ 240V AC output contact rating while the 001-230-1212 is rated 10A @ 240V AC. However, the PMPU-FA12X does have a B300 & R300 Pilot duty rating while the 001-230-1212 does not have any pilot duty rating.

Competitor: MPE | Competitor Series: 001-480 | Competitor Part #: 14801212

MACROMATIC COMPATIBLE PART:

PMPU-FA12X

DIFFERENCES:

While functionally the same and with the same output configurations, there are some differences between the Macromatic PMPU-FA12X and the MPE 001-480-1212 products. First, the PMPU-FA12X works on any three-phase system from 190-500V AC; the 001-480-1212 only works on 480V AC, so multiple products are required to cover 208, 240, 400 & 480V systems. Second, the PMPU-FA12X includes overvoltage protection and a fixed 4 second time delay on overvoltage as standard; the MPE 001-480-1212 can be ordered with or without overvoltage protection & with a variety of fixed time delay on overvoltage values. Third, the PMPU-FA12X comes in a standard 3″ tall enclosure while the 001-480-1212 is in a taller 3.75″ enclosure. Finally, the PMPU-FA12X has a 5A @ 240V AC output contact rating while the 001-480-1212 is rated 10A @ 240V AC. However, the PMPU-FA12X does have a B300 & R300 Pilot duty rating while the 001-480-1212 does not have any pilot duty rating.

Competitor: MPE | Competitor Series: 001-480 | Competitor Part #: 001-480-118

MACROMATIC COMPATIBLE PART:

PMPU-FA8X

DIFFERENCES:

The MPE unit works on 240V only; the Macromatic PMPU-FA8X works on any voltage from 190-500V

Competitor: MPE | Competitor Series: 001-480 | Competitor Part #: 001-480-1212

MACROMATIC COMPATIBLE PART:

PMPU-FA12X

DIFFERENCES:

Competitor: MPE | Competitor Series: 001-DVM | Competitor Part #: 001-DVM-118

MACROMATIC COMPATIBLE PART:

PMPU-FA8X

DIFFERENCES:

Exact cross except the MPE unit offers optional overvoltage protection (if “OV” suffix is added”) while the Macromatic unit has overvoltage protection as standard; the MPE unit stands 3.75″ tall while the Macromatic unit is only 3.1″; the Macromatic unit has a dual-color LED with the fault code table on the top of the relay while the MPE unit has a one-color LED and the fault code table is on the side.

Competitor: MPE | Competitor Series: 001-DVM | Competitor Part #: 001-DVM-118U

MACROMATIC COMPATIBLE PART:

PJPU-FA8X

DIFFERENCES:

Exact cross except the MPE unit stands 3.75″ tall while the Macromatic unit is only 3.1″; the Macromatic unit has a dual-color LED with the fault code table on the top of the relay while the MPE unit has a one-color LED and the fault code table is on the side.

Competitor: MPE | Competitor Series: 001-DVM | Competitor Part #: 001-DVM-118-U

MACROMATIC COMPATIBLE PART:

PJPU-FA8X

DIFFERENCES:

Exact cross except the MPE unit stands 3.75″ tall while the Macromatic unit is only 3.1″; the Macromatic unit has a dual-color LED with the fault code table on the top of the relay while the MPE unit has a one-color LED and the fault code table is on the side.

Competitor: MPE | Competitor Series: 001-DVM | Competitor Part #: 001DVM1212

MACROMATIC COMPATIBLE PART:

PMPU-FA12X

DIFFERENCES:

While functionally the same and with the same output configurations, there are some differences between the Macromatic PMPU-FA12X and the MPE 001-DVM-1212 products. First, the PMPU-FA12X includes overvoltage protection and a fixed 4 second time delay on overvoltage as standard; the MPE 001-DVM-1212 can be ordered with or without overvoltage protection & with a variety of fixed time delay on overvoltage values. Second, the PMPU-FA12X comes in a standard 3″ tall enclosure while the 001-DVM-1212 is in a taller 3.75″ enclosure. Finally, the PMPU-FA12X has a 5A @ 240V AC output contact rating while the 001-DVM-1212 is rated 10A @ 240V AC. However, the PMPU-FA12X does have a B300 & R300 Pilot duty rating while the 001-DVM-1212 does not have any pilot duty rating.

Competitor: MPE | Competitor Series: 001-DVM | Competitor Part #: 001-DVM-1212

MACROMATIC COMPATIBLE PART:

PMPU-FA12X

DIFFERENCES:

While functionally the same and with the same output configurations, there are some differences between the Macromatic PMPU-FA12X and the MPE 001-DVM-1212 products. First, the PMPU-FA12X includes overvoltage protection and a fixed 4 second time delay on overvoltage as standard; the MPE 001-DVM-1212 can be ordered with or without overvoltage protection & with a variety of fixed time delay on overvoltage values. Second, the PMPU-FA12X comes in a standard 3″ tall enclosure while the 001-DVM-1212 is in a taller 3.75″ enclosure. Finally, the PMPU-FA12X has a 5A @ 240V AC output contact rating while the 001-DVM-1212 is rated 10A @ 240V AC. However, the PMPU-FA12X does have a B300 & R300 Pilot duty rating while the 001-DVM-1212 does not have any pilot duty rating.

Competitor: MPE | Competitor Series: 008-024 | Competitor Part #: 008-024-10

MACROMATIC COMPATIBLE PART:

ARP024A6

DIFFERENCES:

Exact cross except MPE unit is in taller enclosure than Macromatic equivalent product (0.625″ taller)

Competitor: MPE | Competitor Series: 008-024 | Competitor Part #: 008-024-10S

MACROMATIC COMPATIBLE PART:

ARP024A6R

DIFFERENCES:

https://www.macromatic.com/wp-content/uploads/2024/03/ARF120A6R-w-socket-side.jpg-3.webp

Competitor: MPE | Competitor Series: 008-024 | Competitor Part #: 008-024-11

MACROMATIC COMPATIBLE PART:

ARP024A3

DIFFERENCES:

Exact cross except MPE unit is in taller enclosure than Macromatic equivalent product (0.625″ taller)

Competitor: MPE | Competitor Series: 008-024 | Competitor Part #: 008-024-11S

MACROMATIC COMPATIBLE PART:

ARP024A3R

DIFFERENCES:

Competitor: MPE | Competitor Series: 008-024 | Competitor Part #: 008-024-12

MACROMATIC COMPATIBLE PART:

ARP024A2

DIFFERENCES:

Exact cross except MPE unit is in taller enclosure than Macromatic equivalent product (0.625″ taller)

Competitor: MPE | Competitor Series: 008-024 | Competitor Part #: 008-024-12S

MACROMATIC COMPATIBLE PART:

ARP024A2R

DIFFERENCES:

Competitor: MPE | Competitor Series: 008-024 | Competitor Part #: 008-024-13

MACROMATIC COMPATIBLE PART:

ARP024A5

DIFFERENCES:

Exact cross except MPE unit is in taller enclosure than Macromatic equivalent product (0.625″ taller)

Competitor: MPE | Competitor Series: 008-024 | Competitor Part #: 008-024-13S

MACROMATIC COMPATIBLE PART:

ARP024A5R

DIFFERENCES:

Competitor: MPE | Competitor Series: 008-120 | Competitor Part #: 008-120-10

MACROMATIC COMPATIBLE PART:

ARP120A6

DIFFERENCES:

Exact cross except MPE unit is in taller enclosure than Macromatic equivalent product (0.625″ taller)

Competitor: MPE | Competitor Series: 008-120 | Competitor Part #: 008-120-10S

MACROMATIC COMPATIBLE PART:

ARP120A6R

DIFFERENCES:

Competitor: MPE | Competitor Series: 008-120 | Competitor Part #: 008-120-11

MACROMATIC COMPATIBLE PART:

ARP120A3

DIFFERENCES:

Exact cross except MPE unit is in taller enclosure than Macromatic equivalent product (0.625″ taller)

Competitor: MPE | Competitor Series: 008-120 | Competitor Part #: 008-120-11S

MACROMATIC COMPATIBLE PART:

ARP120A3R

DIFFERENCES:

Competitor: MPE | Competitor Series: 008-120 | Competitor Part #: 008-120-12

MACROMATIC COMPATIBLE PART:

ARP120A2

DIFFERENCES:

Exact cross except MPE unit is in taller enclosure than Macromatic equivalent product (0.625″ taller)

Competitor: MPE | Competitor Series: 008-120 | Competitor Part #: 008-120-12S

MACROMATIC COMPATIBLE PART:

ARP120A2R

DIFFERENCES:
